TCS 500 Oval Gear Meter
The Oval Gear meter is a precise, positive displacement flow meter incorporating a pair of oval geared rotors.
Image is not available

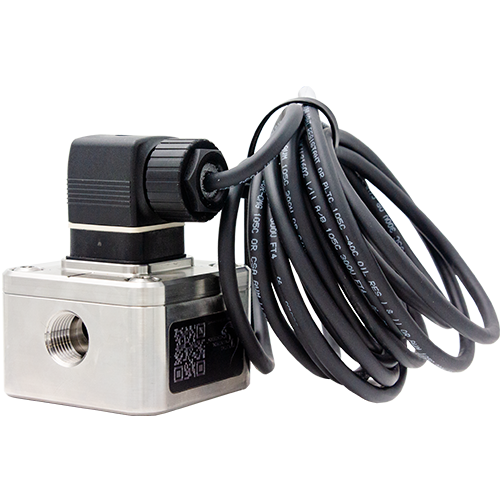

tcs500 smallThe Oval Gear meter is a precise positive displacement flowmeter incorporating a pair of oval geared rotors. These meters are capable of measuring the flow of a broad range of clean liquids. Stainless Steel flowmeters are suited to most water-based products, chemicals, and lubricating liquids. The flow meter is available as a blind pulse meter with a non-factored pulse output capable of interfacing to most monitoring and control instrumentation.

Specifications

  • Flow Range: 4 to 180 GPH (15 to 681 LPH)
  • Linear Accuracy: Capable of ± 1%
  • Repeatability: Capable of 0.03%
  • Operating Pressure: Up to 150 PSI (10.5 BAR)
  • Temperature Range: -30°F to 176°F (-34°C to 80°C)
  • Connections: 3/8" NPT
  • Hall Effect Output: 3 wire open collector, 5vdc at 20 mA max
  • Protection Class: Built to IP66/67 (NEMA 4X)

Construction

  • Housing: 316 Stainless Steel
  • Sintered Gears: 316 Stainless Steel
  • Seals: EPDM, FKM, PTFE or Neoprene Available
