TCS 3000 Electronic Register
Transform the way you deliver fuel with this powerful, easy-to-use electronic register.
Image is not available
Slide

TCS 3000 Electronic Register

More than a Register

Equipped with state-of-the-art software, the TCS 3000 goes beyond standard meter register capabilities. With an internal database and an array of delivery automation features, the TCS 3000 goes above and beyond. Now you can have more insight into and control over your deliveries!

Next Level Delivery Automation

Experience the most sophisticated delivery automation on the market! With TCS OnPoint, the TCS 3000 can help ensure your delivery stays within preconfigured parameters or it will shut down the delivery.

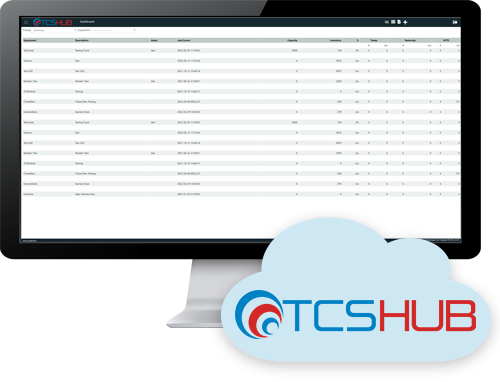

When a delivery has been successfully completed, the information can be uploaded to the TCS HUB, a web-based delivery software for reporting and automatic importing into 3rd party POS and/or ERP software.

Mobile Device-Ready

Control the TCS 3000 from TCS Mobile, an app that lets you connect to one or more TCS 3000 registers and start, control, monitor, stop, and complete deliveries remotely.

Latest Firmware & Upgrade Info

TCS 3000 offers free upgrades to keep your register in step with industry & regulatory changes.

LEARN MORE

Slide 1

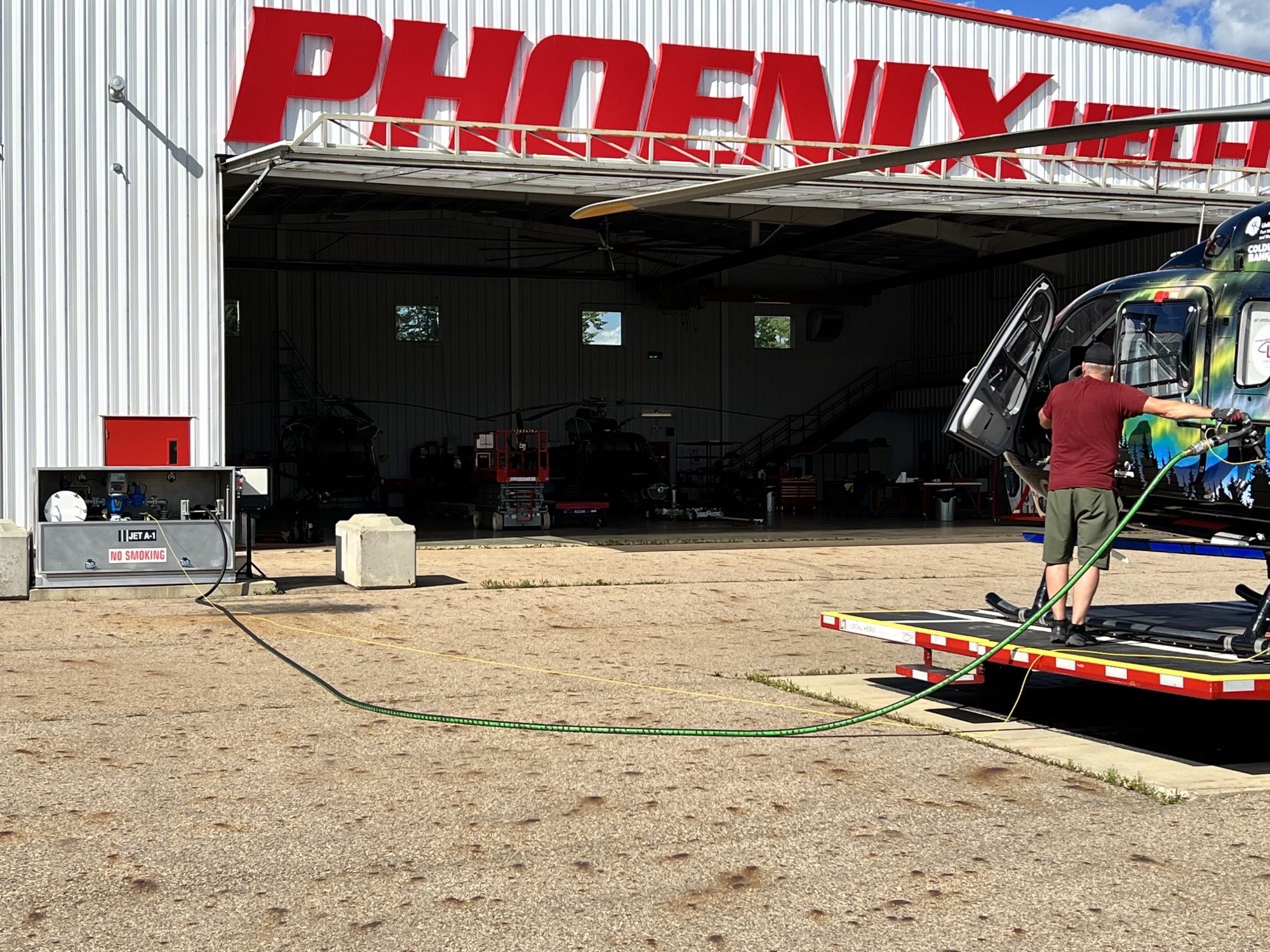

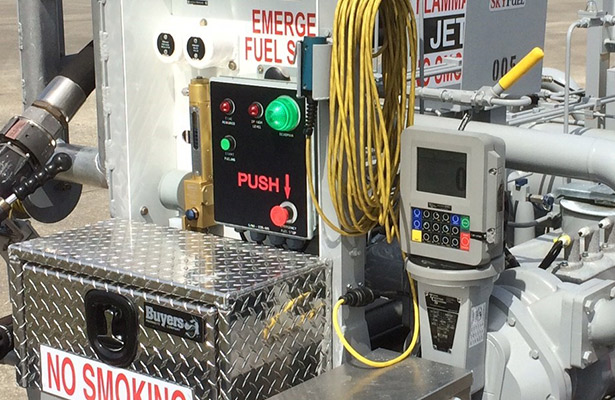

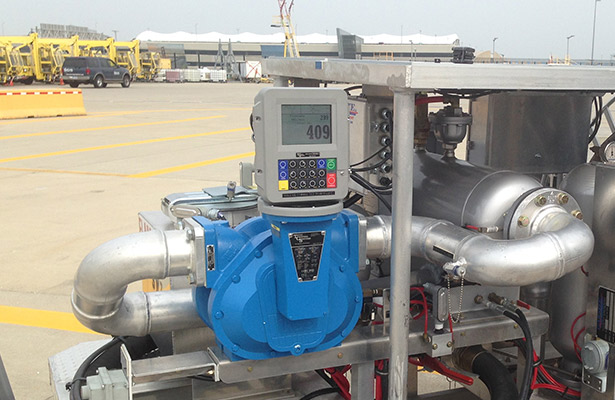

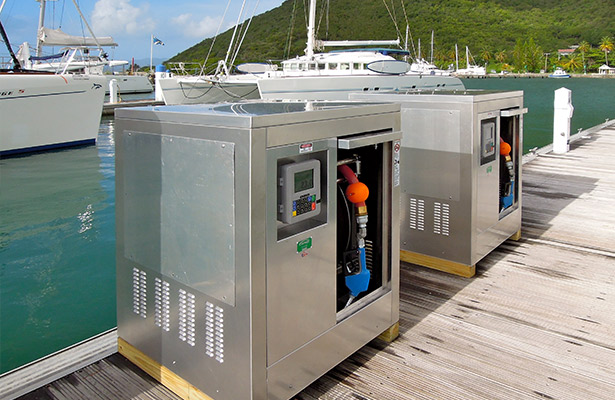

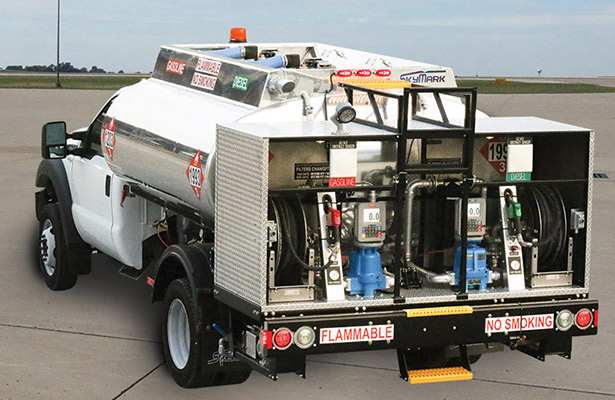

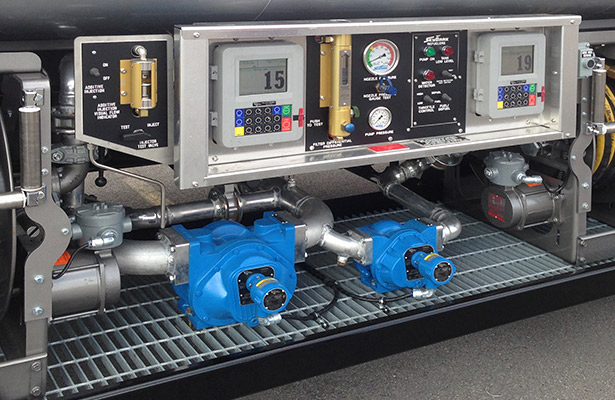

TCS 3000 is Transforming Fuel Deliveries Globally

TCS 3000 is used in a wide array of industries and applications.

exterior

The new facility features both internal and external storage tanks with room for expansion.

aerial

Premier Ag’s new liquid fertilizer and crop chemical building is part of a larger 10 acre location in Shelbyville, IN.

ICS ControlPro

ICS ControlPro software manages the facility with an intuitive user-friendly interface. The same software imports and exports tickets to/from the home office for accurate accounting and billing.

Loadout Bays

With the facility’s top and bottom loading bays, vehicles and containers of various sizes can be filled quickly and precisely.

Overhead Loadout

The overhead loadout bay includes an expanding gangway and multi-point swivel arm for safe filling.

Premix

Small batches are accurately metered/weighed with the same ICS ControlPro software as the larger bulk deliveries.

Meters

Highly accurate TCS meters precisely measure both micronutrients and crop chemicals.

previous arrow
next arrow

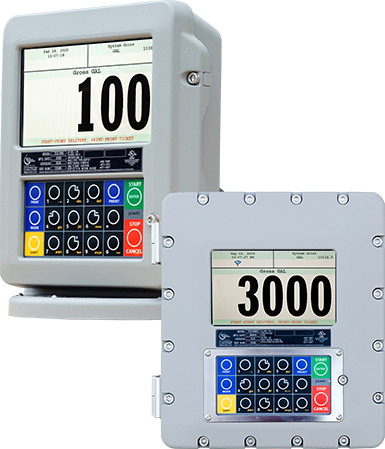

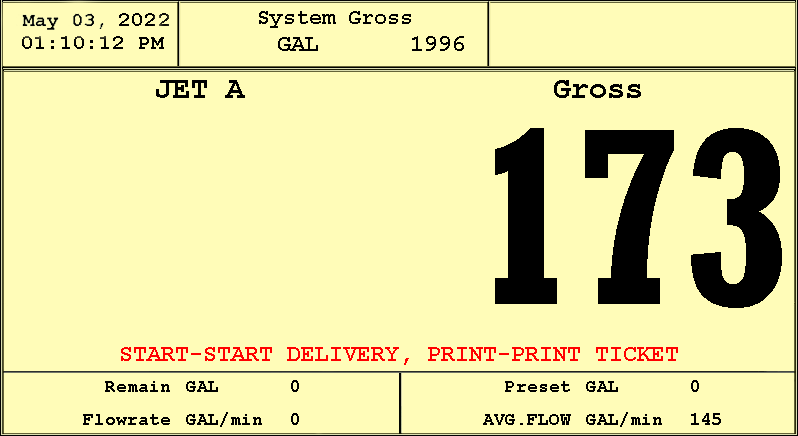

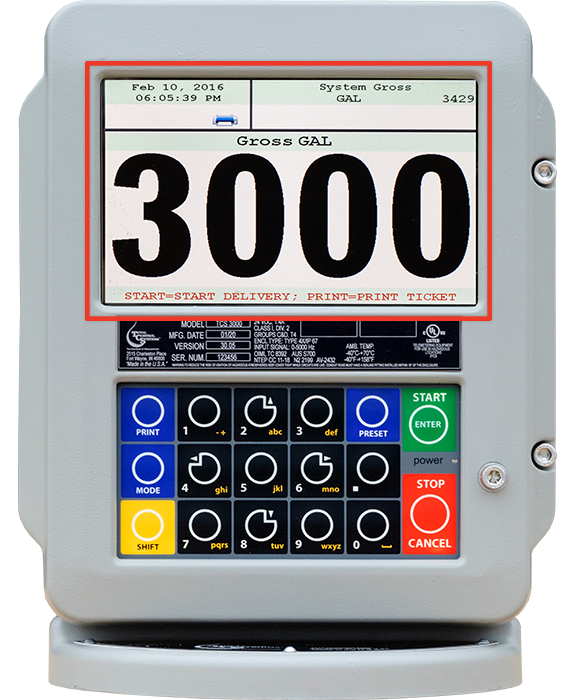

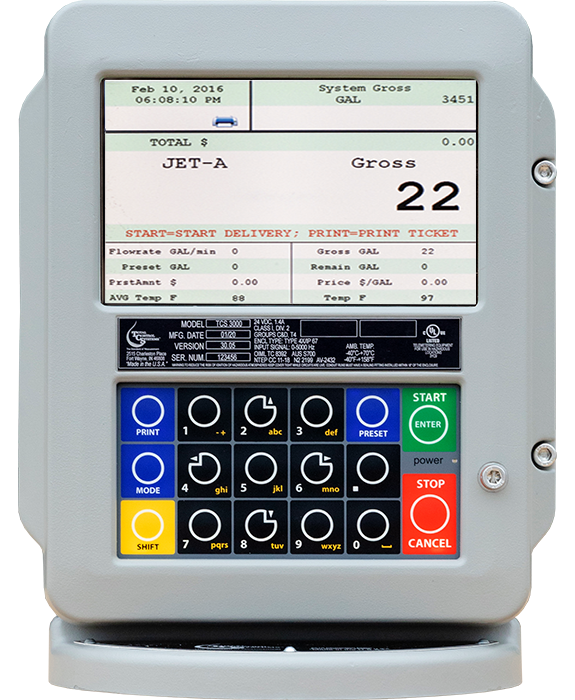

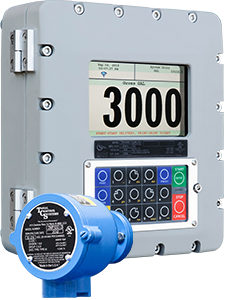

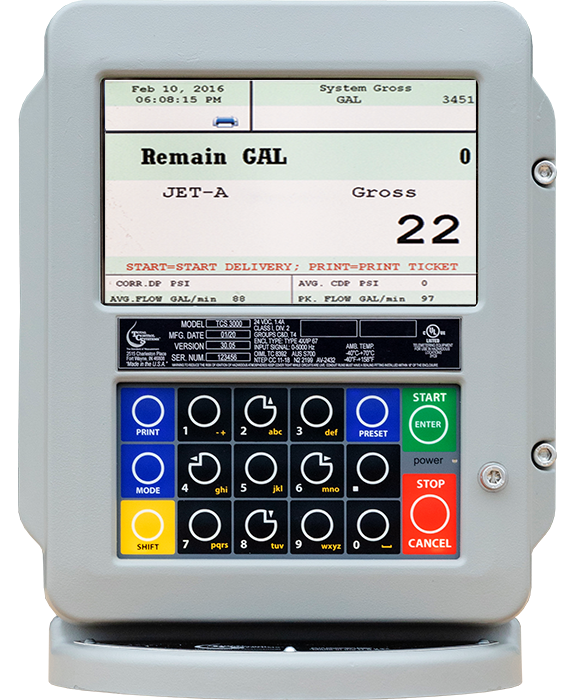

The TCS 3000 is a powerful, electronic register designed to transform the way you deliver fuel. It has been engineered to control most vehicle delivery operations.

Features



The TCS 3000 electronic register was designed for a marketplace that is developing rapidly. With the ease of setup, you have the option of a simple "Pump & Print" delivery or a custom measurement solution.

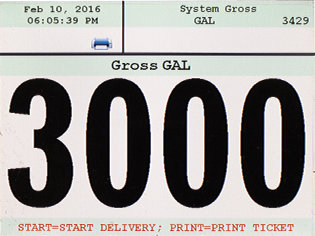

  • Simple Pump & Print
  • Single or Multiple Products
  • Auto-Calibration

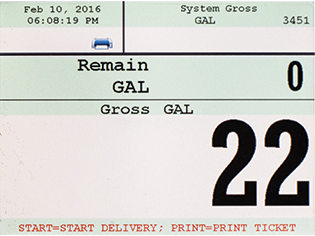

  • Preset Price or Gallons
  • In-field Setup & Configuration
  • Optional Internal WiFi or Cellular Modem (Gen 2)
  • Temperature Volume Compensation

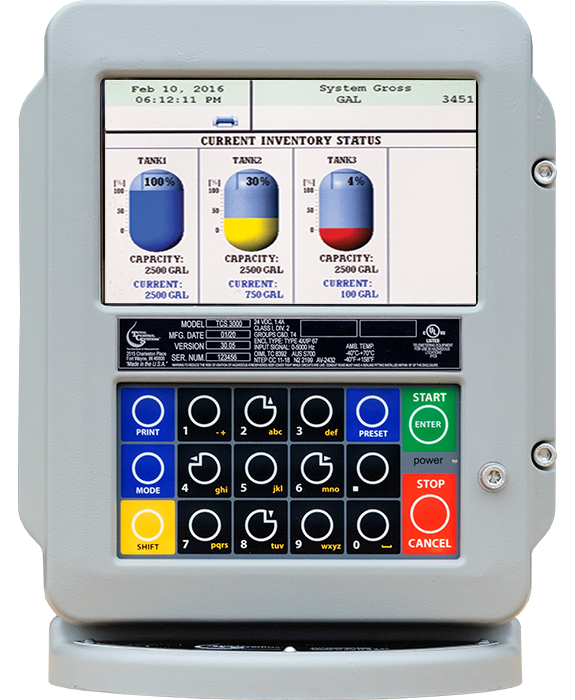

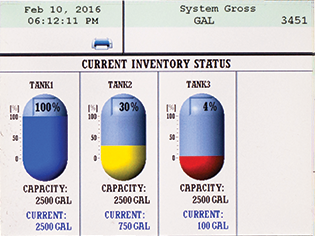

  • Real-Time or Manual Tank Gauging

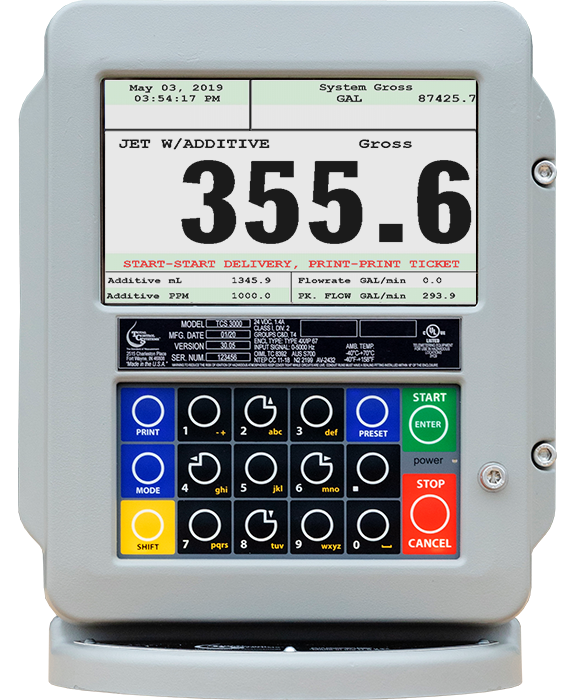

  • Additive Injection to Control Piston or Gear/Vane PD pumps (Gen 2)
  • Density Measurement & Control
  • Water Measurement & Control
  • Corrected Differential Pressure
  • JIG Compliant Water Integration with External LED Indication (Gen 2)
  • External Operation Alarm Lamp Indication
  • Electronic Pump Control/PTO
  • Throttle Controls
  • Flow Rate Controls
  • Electronic Preset
  • Wireless Data Capture
  • Calibration, Shift and Inventory Reports

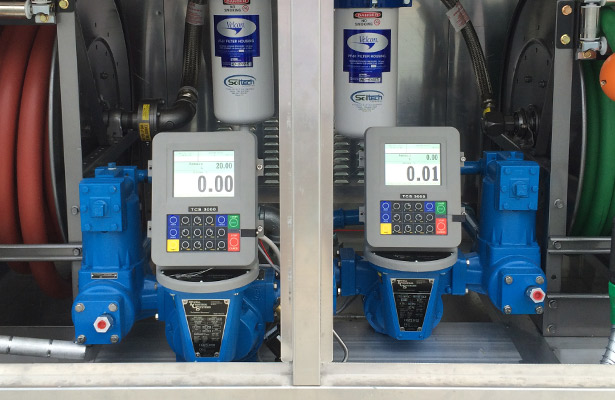

  • Electronic Vapor or Air Elimination
  • LED I/O Diagnostic Indicators (Gend 2)
  • And More!

Specifications


  • Memory: 8 GB of Non-Volatile Memory
  • Serial Ports: RS-232 and RS-485
  • Printer Interfaces: Open Interface for Slip, Roll, and Wireless Printing
  • Internal Wireless Communication: WIFI and Cell Add-Ons Available
  • External Wireless Communication:  WIFI, Radio, Cell and Bluetooth Add-Ons Available
  • GPS Tracking: Available Upon Request

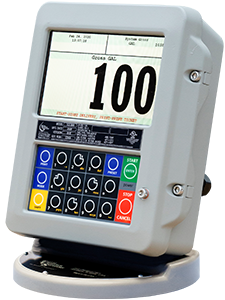

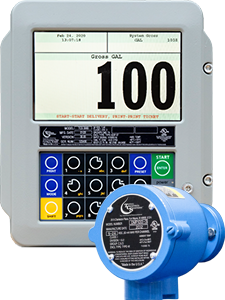

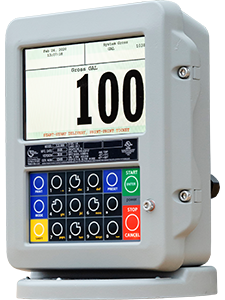

  • Mounting Options: 75 Degree, 90 Degree, & Remote (Must be Specfied at Time of Order)
  • Software: Integrated Database, Interface Software Available
  • Temperature Rating: -40 to 158 F (-40 to 70 C)
  • Input Voltage: 12-30 Vdc
  • UL/cUL Rating: Class 1, Division 2, Groups C & D
