The TCS 700 rotary flow meter combines excellent accuracy with low-pressure drop.  The TCS 700 rotary flow meter has a compact size and lightweight design that offers minimal maintenance and long service life.  This meter is built with advanced materials of construction for a broad range of measurement applications and is accompanied by a full selection of accessories and electronic registration.



Features

The TCS 700 series rotary flow meter has a simple and efficient meter design consisting of a housing and three rotors that rotate in unison within the measuring chamber. The absence of wear, from no metal-to-metal contact within the chamber, eliminates any deterioration in accuracy and provides a long service life.

The rotors are supported by bearings inserted into two bearing plates, where at the end of each rotor shaft is a timing gear. The timed rotation between each rotor is then transferred through the calibration adjuster to the register, giving a consistent and superior measurement of accuracy.

Specifications

  • Flow: Capable of up to 1,000 GPM (3,785 LPM);  Bi-directional Flow
  • Linear Accuracy: Capable of ± 0.15% of over the full flow range
  • Repeatability: Capable of 0.02% (constant operation conditions with 700SP meters & mechanical registration, using 1 CPS test fluid)
  • Viscosity: Will accurately measure liquids up to 1,500,000 SSU (325,000 CPS)
  • Temperature: - 40 to 160°F (- 40 to 71°C)
  • Approvals: Meets a wide range of weights and measures requirements. (Contact factory for information on specific approvals.)

Meter Types

700 SPS - Standard Petroleum Steel
700 SPS - Standard Petroleum Steel

The 700 SPS rotary flow meter is designed to meter aviation gasoline, gasoline, jet fuels, fuel oils, diesel, bio-diesel, kerosene, and naptha in locations that require a steel case. It is available in 4" size and can be a drop-in replacement for competing meters.

700 SPD - Standard Petroleum Ductile Nodular Iron

Materials of Construction: Ductile Iron

, Stainless Steel

, Carbon Graphite

, Treated Stainless Steel

, Ni-Resist

, FKM

, Simriz*

The 700 SPD rotary flow meter is designed to meter refined petroleum products such as aviation gasoline, ethanol blends, methanol blends, gasoline, fuel oils, diesel, bio-diesel, kerosene, vegetable oils, soy oil, etc. It is available in 2" to 4" sizes.

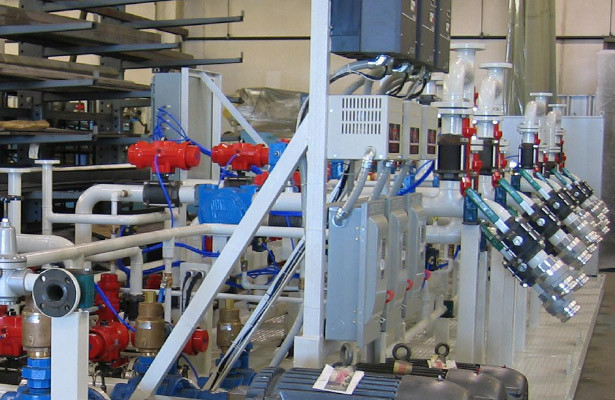

700 IC - Industrial Products Carbon Bearings

Materials of Construction: Anodized Aluminum

, Stainless Steel

, Carbon Graphite

, Treated Stainless Steel

, Ni-Resist

, Simriz*

, PTFE

The 700IC rotary flow meter is designed to meter industrial chemicals, general solvents, water, and other non-lubricating liquids such as alcohol, acetones, ethanol, naphtha, xylene, MEK, touluene, deionized water, demineralized water, potable water, etc. It is available in 1.5" to 4" sizes.

700 IP - Industrial Products Stainless Steel Bearings

Materials of Construction: Anodized Aluminum

, Stainless Steel

, Treated Stainless Steel

, Ni-Resist

, Simriz*

, PTFE

The 700 IP rotary flow meter is designed to meter industrial chemicals, general solvents, and many other liquids such as liquid sugars, corn syrup, soy bean oil, latex products, adhesives, etc. It is available in 1.5" to 4" sizes.

700 AF - All Ferrous

Materials of Construction: Ductile Iron

, Stainless Steel

, Carbon Graphite

, Ni-Resist

, PTFE

The 700 AF rotary flow meter is designed to meter industrial chemicals, solvents, pesticides, fertilizer, chlorinated solvents, paints, inks, alcohols, molasses, corn syrup, and more. It is available in 2" to 4" sizes.

700 SS - Stainless Steel

Materials of Construction: 316 Stainless Steel

, Carbon Graphite

, Treated Stainless Steel

, Simriz*

, PTFE

The 700 SS rotary flow meter is designed to meter all the same liquids as the SP, SPA, SPD, IP, IC, and AF flow meters, but includes special handling for fluids such has nitric, phosphorus and glacial acetic acids, anti-icing fluids, vinegar, fruit juices, etc. It is available in 2" size.

700 SSD - Stainless Steel DEF

Materials of Construction: Stainless Steel

, Treated Stainless Steel

, Ryton

, EPDM

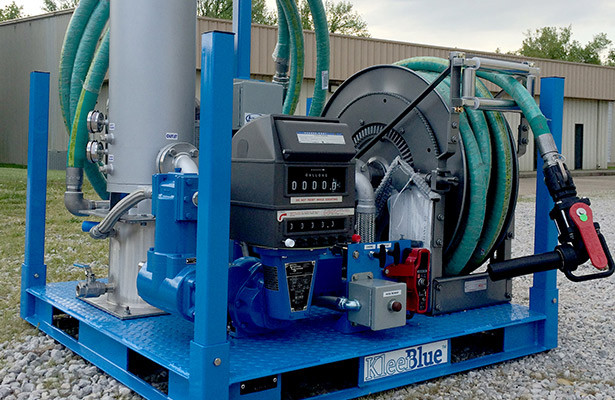

The 700 SSD rotary flow meter is designed to meter diesel exhaust fluid (DEF), AdBlue, AUS 32, and ARLA 32. It is available in 2" size.

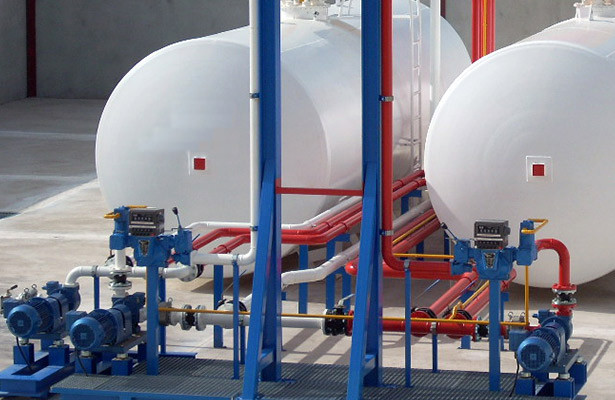

700 LP - Liquefied Petroleum Gas

Materials of Construction: Anodized Aluminum

, Stainless Steel

, Ni-Resist

, Buna

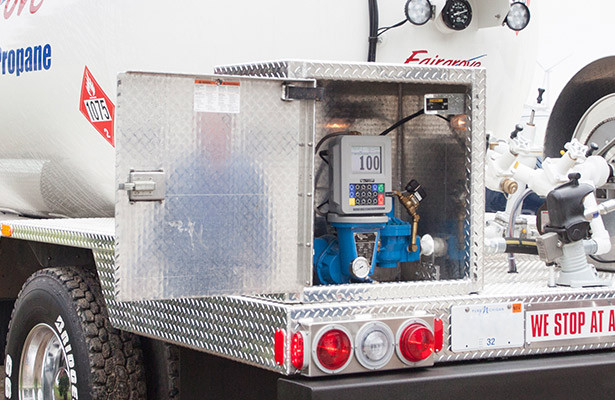

The 700 LP rotary flow meter is designed for metering liquefied petroleum gas (LP/LPG) and NH3. It is available in 2" size.

700 SPA - Standard Petroleum Aviation

Materials of Construction: Anodized Aluminum

, Stainless Steel

, Carbon Graphite

, Treated Stainless Steel

, Ni-Resist

, FKM

The 700 SPA rotary flow meter is designed to meter aviation gasoline, gasoline, jet fuels, fuel oils, diesel, bio-diesel, kerosene, and naptha. It is available in 1.5" to 6" sizes.

700 SP - Standard Petroleum Meters

Materials of Construction: Anodized Aluminum

, Stainless Steel

, Treated Stainless Steel

, Ni-Resist

, FKM

The 700 SP rotary flow meter is designed to meter petroleum products such as gasoline, fuel oils, diesel, bio-diesel, kerosene, vegetable oils, soy oil, motor oils, ethylene glycol (anti-freeze), etc. It is available in 1.5" to 4" sizes.

Sizes

All Meter Sizes

Meter Types: IC

, IP

, SP

, SPA

Flange Connections: 1 1/2” NPT Flange; 1” & 2” Options

The 700 1.5" rotary flow meter is engineered to meter liquid at up to 60 GPM (227 LPM).

Meter Types: AF

, IC

, IP

, LP

, SPA

, SP

, SPD

Flange Connections: 2” NPT Flange; 1 1/2” Option

The 700 2" rotary flow meter is engineered to meter liquid at up to 100 GPM (380 LPM).

Meter Types: SPA

, SPD

Flange Connections: 2” NPT Flange

The 700 2" rotary flow meter is engineered to meter liquid at up 150 GPM (567 LPM).

Meter Types: AF

, IC

, IP

, SP

, SPD

, SPA

Flange Connections: 3” NPT Flange; 2” Option

The 700 3" rotary flow meter is engineered to meter liquid at up to 200 GPM (760 LPM).

Meter Types: SPA

, SPD

Flange Connections: 3” NPT Flange

The 700 3" rotary flow meter is engineered to meter liquid at up to 300 GPM (1,135 LPM).

Meter Types: AF

, IC

, IP

, SP

, SPD

, SPA

Flange Connections: 4” NPT Flange; 3” Option

The 700 4" rotary flow meter is engineered to meter liquid at up to 500 GPM (1,893 LPM).

Meter Types: SPA

, SPD

Flange Connections: 4” NPT Flange

The 700 4" rotary flow meter is engineered to meter liquid at up to 600 GPM (2,271 LPM).

Meter Types: SPA

Flange Connections: 6” ANSI Flange

The 700 6" rotary flow meter is engineered to meter liquid at up to 800 GPM (3,040 LPM).

Meter Types: SPA

Flange Connections: 6” ANSI Flange

The 700 6" rotary flow meter is engineered to meter liquid at up to 1,000 GPM (3,800 LPM).
