24VDC Electronic Gear Injection Pump & Metering System
Accurately measure, record & CONTROL additive levels when air is not available.
24VDC Electronic Gear Injection Pump & Metering System
Dual Additive Injection Pump & Meter System
Single Additive Injection Pump & Meter System
Low Amp
The TCS electronic gear injection pumps are a perfect choice for when air is not available. The 24VDC motors have an ATEX EEx II 3 G2 D22 rating and are designed to pull less than 4 amps at maximum load.
Automatic Self-Adjusting

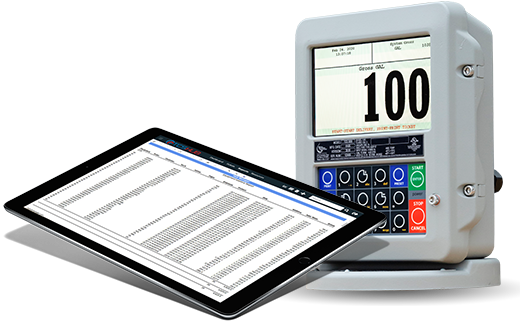

Set your target PPM concentration ratio, and the TCS 3000 register will control a solenoid valve before the injection pump to ensure you maintain an accurate additive blend throughout the entire delivery. If the ratio falls out of tolerance for some reason, the TCS 3000 will end the delivery and print the error on the delivery ticket along with the additive volume and PPM ratio.
ATEX Approved
Electronic
Explosion Proof
Single
Additive Injection Pump & Meter System
Additive Injection Pump & Meter System
- Single 24VDC Explosion Proof Gear Pump
- Strainer
- Flow Meter
- 3-Way Valve
- Back Pressure Orifice
- 1000 ML Test Beaker and Nozzle Injector
- FKM, PTFE or Neoprene Seals
Dual
Additive Injection Pump & Meter System
Additive Injection Pump & Meter System
- Dual 24VDC Explosion Proof Gear Pumps
- Strainers
- Flow Meters
- Check Valves
- 3-Way Valves
- Back Pressure Orifices
- 1000 ML Test Beaker and Nozzle Injectors
- FKM, PTFE or Neoprene Seals
Sample Flow Diagram
The TCS 3000 register will signal the injection pump with an output signal while it controls a solenoid valve to maintain the additive injection pump rate and concentration.
TCS 590908/16/30
8, 16, or 30 Gallon 304SST Tank Assembly with Sight Gauge and 3/8” Drain Valve
500-380SS2D1/2/3
3/8" NPT Oval Gear 0.3 GPM Meter with FMK, Neoprene, or PTFE Seals
TCS 590125
Flow Rate Indicator and Totalizer; Wall-Mounted IP65/NEMA4 ABS Enclosure; 10-30VDC Power
TCS 590902KT
Low Level 3/4” NPT SST Contact Switch with M12
connector and 6” cable - 16” Length Stem
TCS 590105
Single and Dual Suction/Anti-Siphon SST Tube Assembly with Vent and Drierite Tube; 3/8” NPT
TCS 590101
Suction/Anti-Siphon SST Tube Assembly with Vent and Drierite Tube; 3/4” Quick Disconnect
TCS 590109
Suction/Anti-Siphon SST Tube Assembly with Vent and Drierite Tube; 3/4” Quick Disconnect
TCS 590120
1000 mL Graduated Polypropylene Test Cylinder
TCS 590934
Lockable 2" Kamlok Cap with Neoprene Seal - 304 Stainless Steel or Polypropylene
TCS 590942
2" Kamlok F
304 Stainless Steel or Polypropylene
TCS 590946
2" Bulkhead Tank Fitting with Neoprene Seal
304 Stainless Steel or Polypropylene
