TCS 500 Header
TCS 700-15 Rotary Meter
Achieve flow rates of up to 60 GPM (227 LPM). Available in SP, SPA, IC & IP meter types.
Image is not available

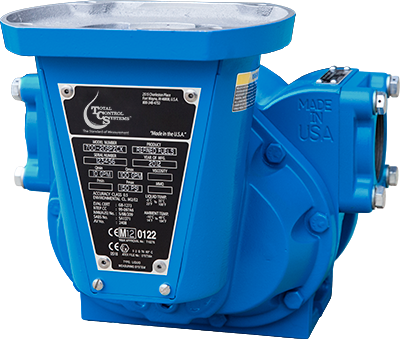

The 700 1.5" rotary flow meter is engineered to meter liquid at up to 60 GPM (227 LPM).

Specifications

  • Flow: Capable of up to 60 GPM (227 LPM);  Bi-directional Flow
  • Flange Connections: 1 1/2” NPT Flange; 1” & 2” Options
  • Linear Accuracy: Capable of ± 0.15% of over the full flow range
  • Repeatability: Capable of 0.02% (constant operation conditions with 700SP meters & mechanical registration, using 1 CPS test fluid)
  • Viscosity: Will accurately measure liquids up to 1,500,000 SSU (325,000 CPS)
  • Working Pressure: 150 PSI (10.5 BAR)
  • Working Temperature: - 40 to 160°F (- 40 to 71°C)

*NPT flanges are standard. BSPT, Slip Weld, ANSI and others available upon request

Meter Types

  • 700 IC - Industrial Products Carbon Bearings

    Information
    Materials of Construction: Anodized Aluminum, Stainless Steel, Carbon Graphite, Treated Stainless Steel, Ni-Resist, Simriz*, PTFE
    For metering Alcohols, Chemicals, Solvents, Water and many other Non-Lubricating Liquids such as Acetones, Ethanol, Naphta, Xylene, MEK, Toluene, Resins, etc.
  • 700 IP - Industrial Products Stainless Steel Bearings

    Information
    Materials of Construction: Anodized Aluminum, Stainless Steel, Treated Stainless Steel, Ni-Resist, Simriz*, PTFE
    For Food Processing, Chemicals, General Solvents and many other liquids such as Corn Syrup, Soy Bean Oil, Liquid Sugars, Shortenings, Latex Products, Adhesives, etc.
  • 700 SP - Standard Petroleum Meters

    Information
    Materials of Construction: Anodized Aluminum, Stainless Steel, Treated Stainless Steel, Ni-Resist, FKM
    For metering refined petroleum products such as Gasoline, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Vegetable Oils, Motor Oils, Naptha, Ethylene Glycol, etc.
  • 700 SPA - Standard Petroleum Aviation

    Information
    Materials of Construction: Anodized Aluminum, Stainless Steel, Carbon Graphite, Treated Stainless Steel, Ni-Resist, FKM
    For metering refined petroleum products such as Aviation Gasoline, Jet Fuels, Ethanol, Gasoline, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Vegetable Oils, Motor Oils, Naptha, Ethylene Glycol, etc.

*Simriz is a registered trademark of Freudenberg-NOK

Certifications

Don't see the regulatory approval you need? Contact us. TCS is continually adding to this list. Approvals could be available for a comparable meter, in final approval stages, or simply not added to the website yet.

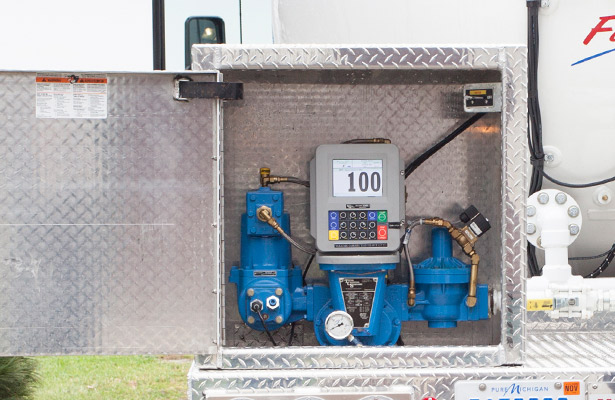

Accessories

The following accessories are compatible with TCS 700 1.5" Meters.

  • TCS 3000 Electronic Register

    The TCS 3000 is a powerful, electronic register designed to transform the way you deliver fuel. It has been engineered to control most vehicle delivery operations.
  • Mechanical Registration

    This rugged, precise mechanical meter register is designed for all kinds of liquid inventory and delivery operations. This register totalizes and displays high-speed deliveries and transactions in large, easy-to-read figures. It features a highly...
  • Pulse Transmitter

    TCS pulse transmitters allow you to send volume data to a remote display, register, computer, or fuel management system (PLC). The glandless pulse transmitter can provide single or dual channel output.The DMP pulse transmitters provide accurate...
  • 740 Air Eliminator & Strainer

    Information
    Available for Types: IC, IP, SP, SPA
    A float and valve design senses and removes free air before it can enter the flow meter. Required for custody transfer applications to ensure the most precise measurement.
  • 655 Electronic Control Valve

    Information
    Available for Types: SP, SPA
    A normally closed two-stage diaphragm preset valve for use with electronic relay control. Stainless steel or brass pilot valves are available. Dimensionally interchangeable with the 650 Hydraulic Preset Valves.
  • 750 Hydraulic Preset Valve

    Information
    Available for Types: IC, IP, SP, SPA
    A normally closed, hydraulically balanced piston control valve allows for auto-batch preset deliveries. The right angle, two–stage control valve is mechanically linked to Veeder Root Preset Counter.
  • 755 Electronic Preset Valve

    Information
    Available for Types: SP, SPA
    A normally closed two-stage piston preset valve for use with electronic relay control. Stainless steel or brass pilot valves are available. Dimensionally interchangeable with the 750 Hydraulic Preset Valves.
